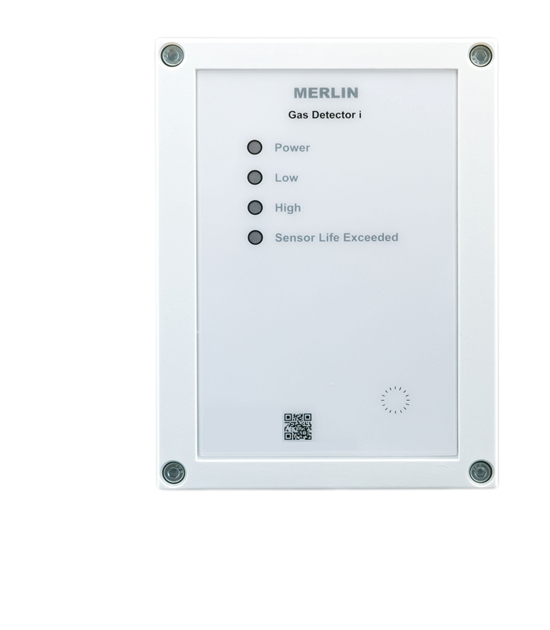

CGSNGi

Natural Gas (Methane)

Product Description

The CGSNGi is a natural gas semiconductor detector and is typically used as a standalone unit or in conjunction with an CGS controller. The detector should be mounted in accordance with certain considerations. Do not position next to burners, heaters or ovens where temperatures above the room ambient may be experienced. It is, if possible, better to mount the sensors on the opposite wall. This is, of course, dependent on the size of the protected area. Natural gas is lighter than air and will therefore rise, meaning the sensor should be mounted 10 Inches from the Ceiling of the protected area. The Natural gas detector at detection will go into alarm at 10% of the low explosion level. When connected to an CGS controller, this can be used to trigger the isolation of the power supply to a solenoid valve and as such isolation of the gas supply. This can then be rectified by resolving the leak, allowing the sensor head to clear and resetting the attached CGS controller and detector.

For further information on our Merlin gas detectors please refer to our product data sheet.

• 24VAC or DC Powered
• Traffic Light Indication
• Built-In Audible Alarm
• Three Alarm Relay Outputs
• 0-10VDC Variable Output
• BMS/BAS standalone compatibility
• Various gas detector types available
• End of Life Reminder
• ULC approved

• Height – 5.95 inch
• Width – 4.73 inch
• Depth – 1.97 inch
